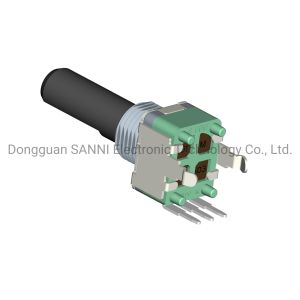

Rotary 9mm Potentiometer Vertical Insulated Shaft Sealed RV90XB2N0FB

Name: Rotary 9mm Potentiometer Vertical Insulated Shaft Sealed RV90XB2N0FB
Brand: SANNI
Price: 0.2 USD

Buy cheap Rotary 9mm Potentiometer Vertical Insulated Shaft Sealed RV90XB2N0FB product

Place of Origin : China

Brand Name : SANNI

MOQ : 2000PCS

Packaging Details : 2000PCS/BOX

Delivery Time : 25 Working days

Payment Terms : T/T

Supply Ability : 30000pcs/Month

Model Number : RV90XB2N0

Price : USD0.2~0.3 per pc

Model NO. : RV90XB2N0FB

Brand : Sanni

Shaft Material : Plastic

Shaft Type : Knurled/D Type/Solid/Customize

Specification : 9mm

Installation : PCB insertion

Samples : Free sample with freight collect shipping

Customization : Available | Customized Request

Contact Now

RV90XB2N0FB Rotary Potentiometer Vertical Type insulated shaft sealed

Product Description

9mm Insulated shaft sealed potentiometer
shaft material: ABS or PC
Width: 9.5mm
Use:Used for player, instrument equipment, meter, sound console, naviation/auto AV, white goods,medical equipment, Aoto

Product features

Rohs compliant
Seal type
Small volume
Structural diversification
High Quality

Rotary 9mm Potentiometer Vertical Insulated Shaft Sealed RV90XB2N0FB

Product characteristics

1.Electrical Characteristics
Total resistance	200Ω-2MΩ
Total resistance tolerance	200Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Residual resistance	20ΩMax.
Rated Power	Linear taper:0.05W, Audio Taper 0.025W
Insulation resistance	100MΩ min. 250V DC
Noise	100mV Max
Voltage proof	100V AC for 1 minute
Maximum operation voltage	50V AC/20V DC
2.Mechanical Characteristics
Rotation stopper strength	Min:3Kgf
Total rotation angle	280^o±10^o
Totational torque	10-100gf.cm
Key push-pull strength	Min:8Kgf 10s Min
Key Wobble	Max: 0.5*L/20mm P-P
Terminal Strength	5N for 1 minute
3.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-40^oC to +85^oC
5.Welding heat reference
Manual Soldering	96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Rosin Core Wire 280oC Max. For 3 Seconds
Wave Soldering	96.5 Sn/3.0 Ag/0.5 Cu Sold Wire or No-Clean Flux 260oC Max. For 5 Seconds

Our Services

1. Offer 1 year warranty

2. OEM/ODM service to meet all your needs

3. within 24 hours to reply your inquiries

4. Strong R&D team for technical support

5. Offer free sample for test

Rotary 9mm Potentiometer Vertical Insulated Shaft Sealed RV90XB2N0FB
